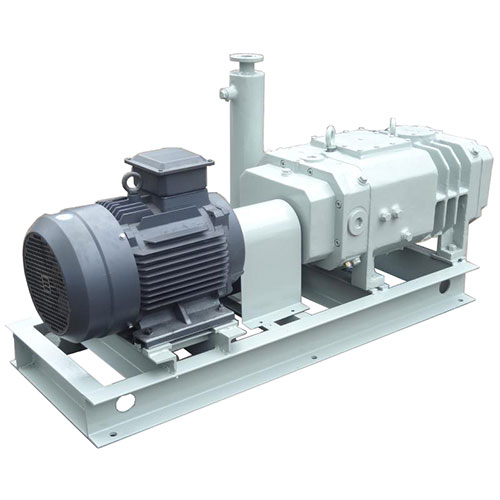

LG系列
>主要技術參數(shù)Performance
|
型號 Model |
抽氣速率 Pumping Speed L/s |
極限壓力（全壓） Ultimate pressure Pa |
轉速 Rotation Speed rpm |
配用功率 Motor Power kw |
進氣口通徑 Inlet Dian mm |
排氣口通徑 Outlet Dian mm |
|
LG50 |
50 |
5 |
2930 |
5.5 |
65 |
40 |
|
LGB70 |
50 |
5 |
2930 |
5.5 |
65 |
40 |
|
LG70 |
70 |
5 |
2930 |
7.5 |
80 |
45 |
|
LG90 |
90 |
5 |
2930 |
11 |
65 |
65 |
|
LGB110 |
110 |
5 |
2930 |
7.5 |
100 |
80 |
|
LG150 |
150 |
5 |
2930 |
15/18.5 |
100 |
65 |
|
LGB220 |
220 |
5 |
2930 |
15/18.5 |
100 |
65 |
|
LG300 |
300 |
5 |
2950 |
37 |
150 |
100 |
|
LGB450 |
300 |
5 |
2950 |
37 |
150 |
100 |
注：LG系列為等螺距螺桿泵，LGB系列為變螺距螺桿泵
>外形尺寸Overall Dimension
